Micro Drilling
By China watch parts, Inc. Standards; Micro Drilling, is defined as anything drilled positionally and dimensionally accurate at less than 1mm (.0394″). MPPM has drilled holes down to accuracies of 5 microns, maintaining this standard in the placement of the hole as well as the diameter; Machining some holes even as small as .127mm (.005″).
Micro Drilling Gallery

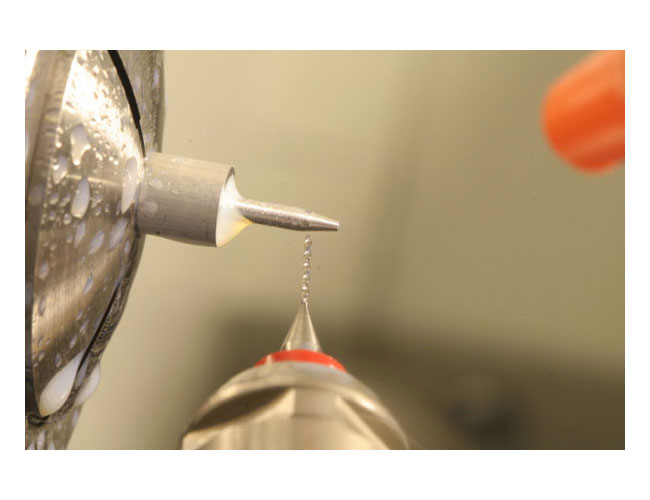

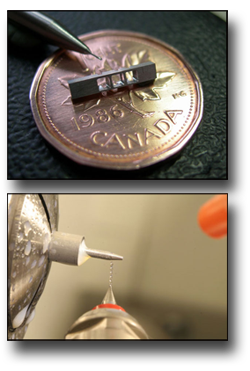

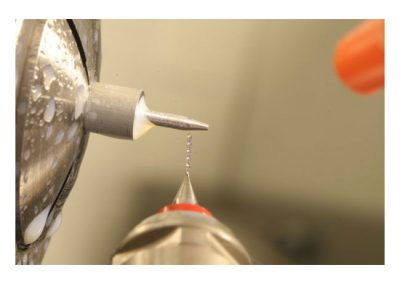

Micro nozzle being drilled on a 14 degree taper at 90 degrees to the taper. HAAS Ol1 lathe live tooling.
Micro nozzle being drilled on a 14 degree taper at 90 degrees to the taper. HAAS Ol1 lathe live tooling.
Tiny LED reflector – machined with micro tooling 6 thou ball end mill.
Tiny LED reflector – machined with micro tooling 6 thou ball end mill.

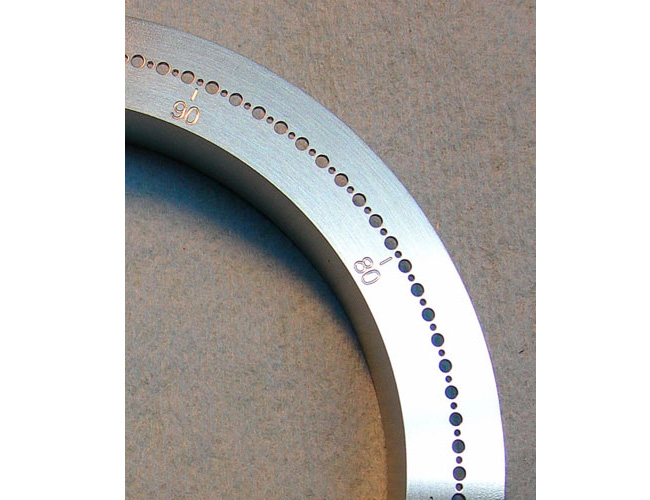

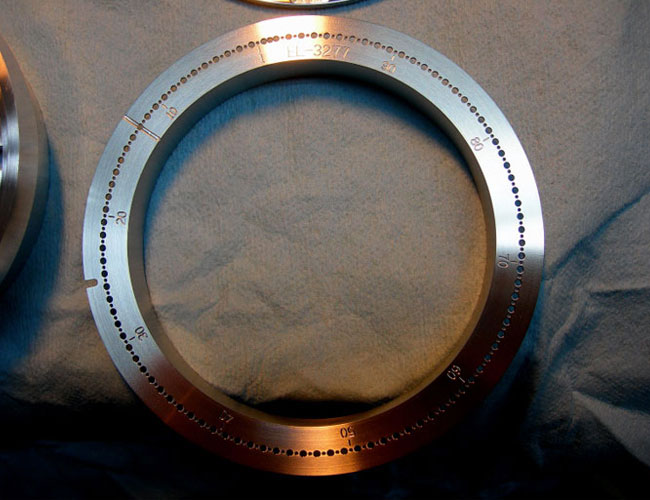

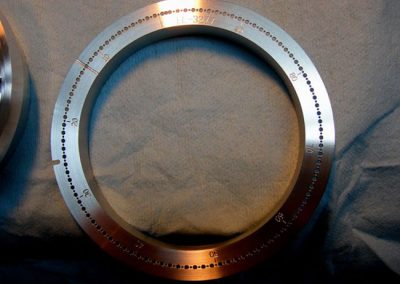

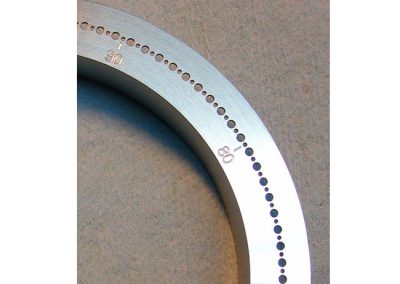

4″ stainless steel part 1/2 thou concentric and 20 thou holes +- 2/10ths of a thou.
4″ stainless steel part 1/2 thou concentric and 20 thou holes +- 2/10ths of a thou.
4″ stainless steel part 1/2 thou concentric and 20 thou holes +- 2/10ths of a thou.
4″ stainless steel part 1/2 thou concentric and 20 thou holes +- 2/10ths of a thou.

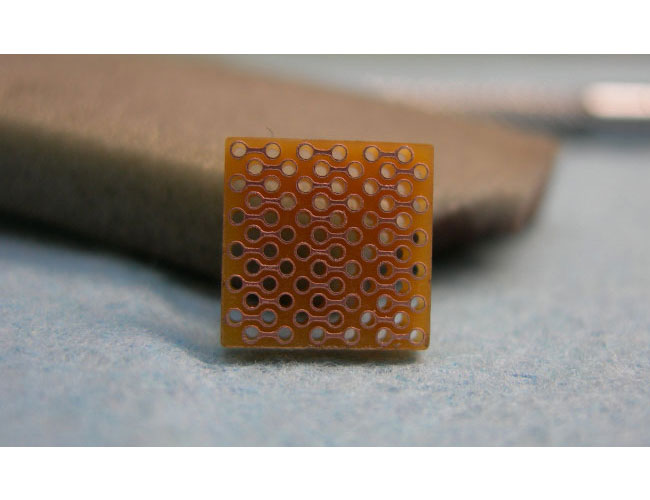

Micro circuit board for Intel.
Micro circuit board for Intel.
